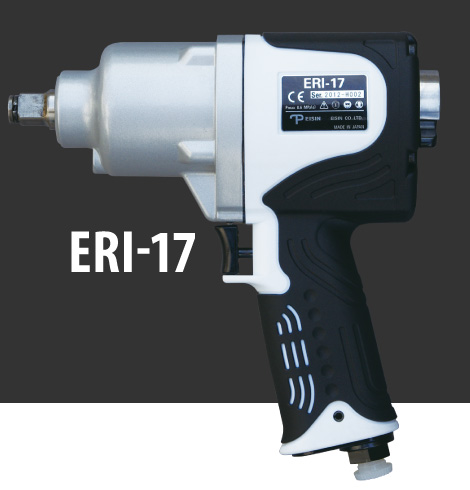

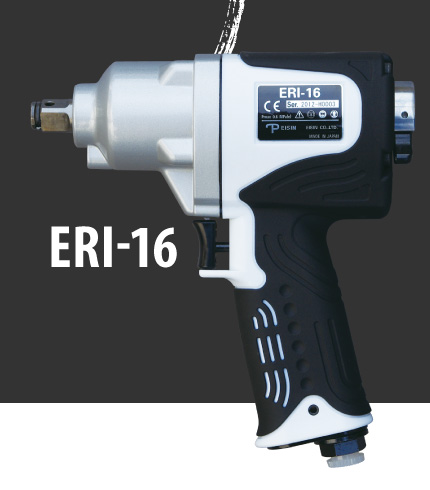

Features ERI-16/17

Double molded Composite Motor Housing

produced from Patented Molding System

All made in Japan

provides Ergonomic Pistol Grip Handle

less Reaction Force to operator

realizing ideal Lightweight

Twin Hanmmer Mechanism

with Oil Bath Clutch

provides most Durable and Reliable hammering

eliminating Hammerlock failures

Captured Motor Liner

ensures Stable and Maximum power ouput.

Specifications

		ERI-16	ERI-17
Square Drive	inch (mm)	1/2 (12.7)	1/2 (12.7)
Net Weight	kg	1.47	2.1
Overall Length	mm	178	199
Overall Height	mm	188	198
Air Inlet	mm	PT 1/4	PT 1/4
Bolt Capacity	inch	16	16
Free Speed	mm	10,500	10,500
Air Consumption on Load at 0.6 Mpa	r.p.m.	0.42	0.51
Hose Size I.D.		8.5 (mm)	3/8 (inch)
Maximum Torque	Nm	450	Forward : 600 Reverse : 650
