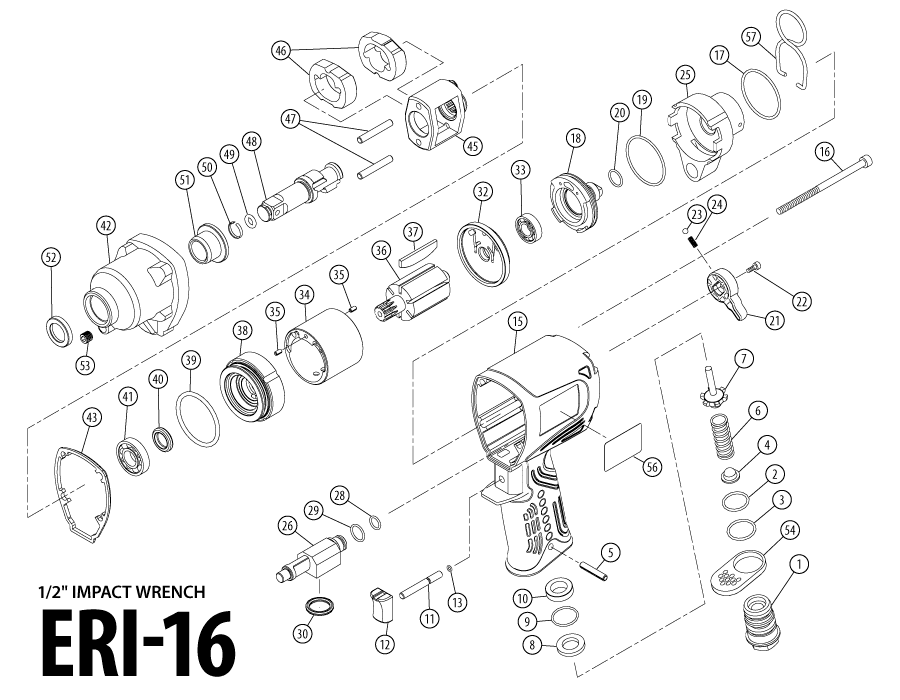

Exploded View

Exploded View ERI-16

Parts List : ERI-16

Index
No. 		Parts No. Q'ty
Req'd 		Description
(1) 43-19-46-840 1 Air Inlet (PT) (Option)
2 13-11-01-016 1 O Ring (P-16)
3 13-11-01-017 1 O Ring (P-18)
4 13-68-03-049 1 Air Screen
5 13-06-20-058 1 Spring Pin (3/16X25.4)
6 13-08-03-181 1 Throttle Valve Spring
7 43-13-94-080 1 Throttle Valve
8 13-68-04-007 1 Throttle Valve Seat
9 13-11-03-015 1 O Ring (S-18)
10 43-18-70-D80 1 Throttle Valve Spacer
11 13-04-03-167 1 Throttle Push Pin
12 13-67-03-073 1 Trigger
13 13-11-03-997 1 O Ring (SS-3.5)
15 43-19-44-010 1 Motor Housing
16 13-17-05-090 4 Hex Socket Head Cap Screw (M5X90)
17 13-11-03-031 1 O Ring (S-38)
18 43-19-44-210 1 Reverse Valve
19 13-11-17-029 1 O Ring (AS568-029)
20 13-11-03-010 1 O Ring (S-12)
21 13-67-03-074 1 Reverse Valve Lever
22 13-17-03-008 1 Hex Socket Head Cap Screw (M3X8)
23 13-05-02-008 1 Steel Ball (1/8)
24 13-08-03-203 1 Spring 3.6X8(0.5)
25 43-19-44-710 1 Rear Cover
26 43-19-46-J80 1 Pipe
28 13-11-03-007 1 O Ring (S-9)
29 13-11-03-010 1 O Ring (S-12)
Index
No. 		Parts No. Q'ty
Req'd 		Description
30 13-12-10-216 1 X Ring (R-16)
32 43-19-44-220 1 Rear Plate
33 13-01-13-001 1 Bearing (6900)
34 43-19-44-360 1 Liner
35 13-06-03-006 2 Spring Pin (3X6)
36 43-19-44-390 1 Rotor
37 13-71-10-136 6 Vane
38 43-19-44-230 1 Front Plate
39 13-11-02-004 1 O Ring (G-40)
40 13-12-10-003 1 Oil Seal (AF-0437H1)
41 13-01-20-004 1 Bearing (EE-4)
42 43-19-44-400 1 Clutch Housing
43 13-61-04-166 1 Rubber Packing
45 43-17-02-440 1 Hammer Frame
46 43-17-02-450 2 Hammer
47 43-17-02-460 2 Hammer Pin
48 43-17-05-500 1 Anvil Shank
49 13-11-05-006 1 O Ring (6227-6)
50 13-08-05-006 1 Socket Retainer
51 43-17-02-490 1 Shank Bushing
52 13-12-42-001 1 Oil Seal AF0668E0(VB16244)
53 13-49-03-016 1 GDL Plug (NPTF 1/16)
54 13-74-03-029 1 Exhaust Deflector
56 13-73-05-146 1 Name Plate
(57) 13-08-09-052 1 Hanger (Option)
